Examples
These files are distributed as a service to help CGNS users test their own implementations.
They are submitted by users “as is” and are not certified by anyone except the sender to be CGNS compliant.
If you have any questions about these data files, please contact the person listed in the table. The CGNS Committee is not able to provide technical support for the data files listed on this webpage.
Please send any CGNS data files (along with a graphic file if possible) or the URL of the datafiles which you would like to share with the CGNS users community to: cgnstalk@lists.nasa.gov .
Note that most of the files on this page are very old.
Structured Grid
Constricting channel
| Contact |
Posted Date |
Revision Date |
|---|
| Marc Poinot |
Jan.25.16 |
Jan.25.16 |
- Description

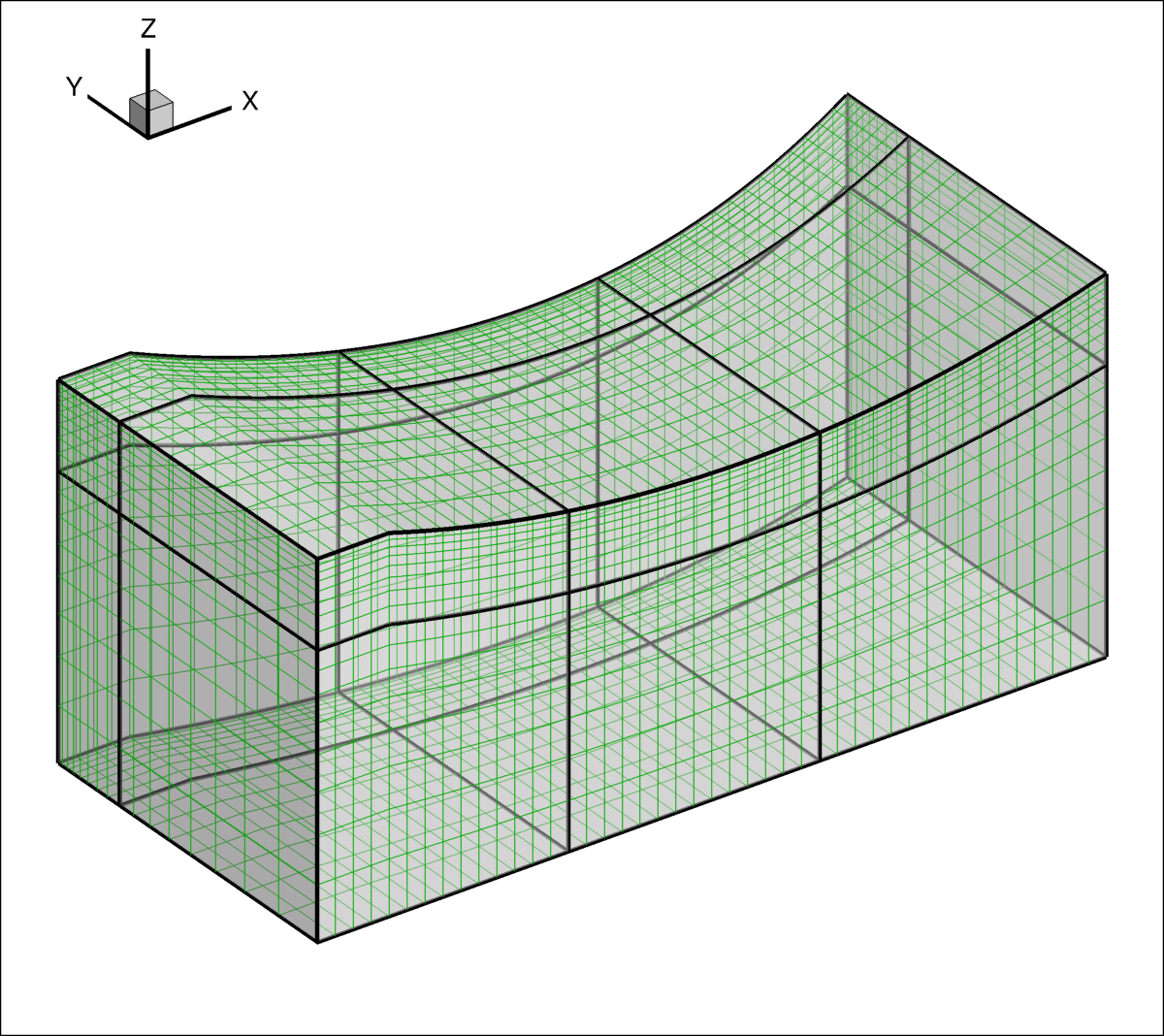

- Structured, 12 block, 3-D constricting channel, with example use of Family_t for BCs
- Data File (ADF)
sqnz_s.adf.cgns.gz (< 1Mb)- Data File (HDF)
sqnz_s.hdf.cgns.gz (< 1Mb)
Axisymmetric bump
| Contact |
Posted Date |
Revision Date |
|---|
| Chris Rumsey |
Apr.14.00 |
Feb.03.14 |
- Description

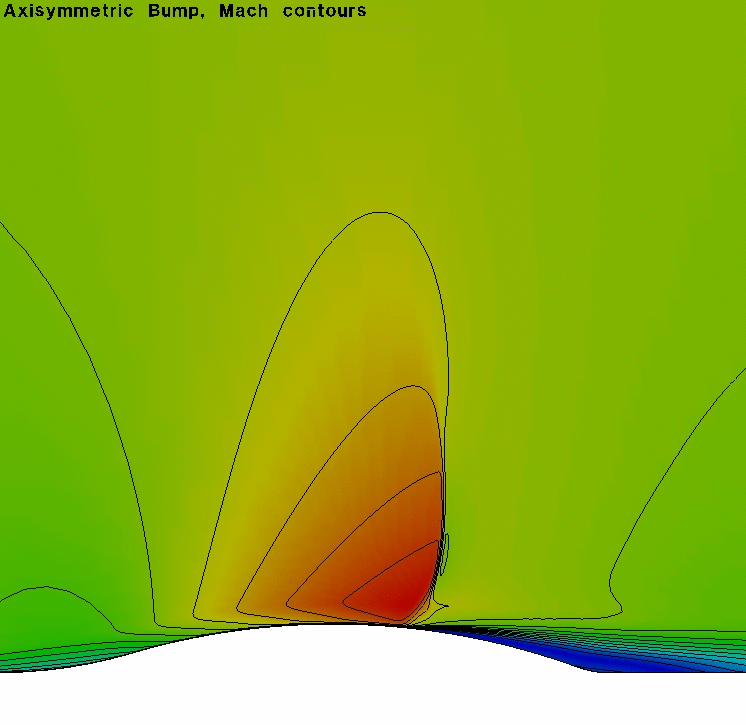

- Structured, 1 block, quasi-3D axisymmetric bump (2 planes) , with cell centered solution
- Data File (ADF)
bump.cgns.gz (6.4Mb)- Data File (HDF)
bump_hdf5.cgns.gz (6.4Mb)

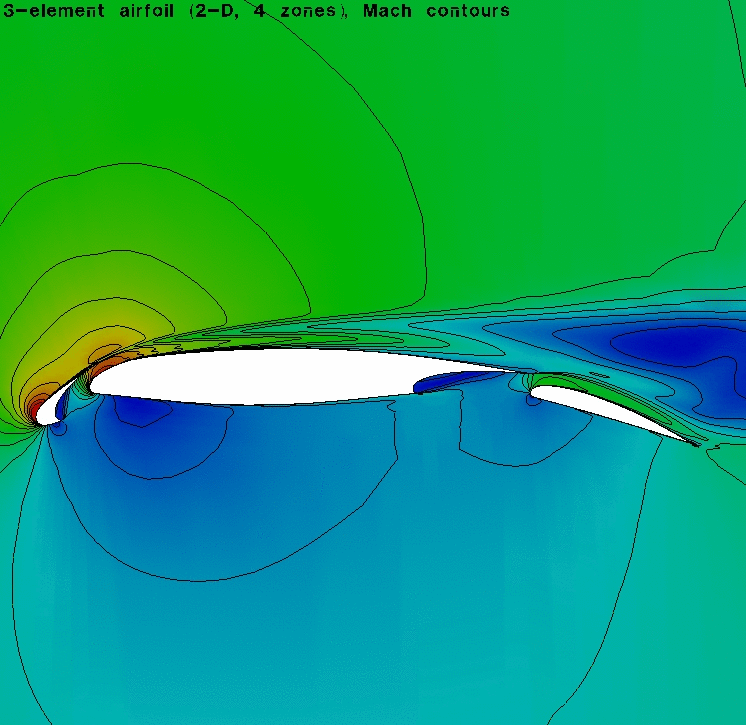

2D Multielement airfoil
| Contact |
Posted Date |
Revision Date |
|---|
| Chris Rumsey |
Apr.14.00 |
Feb.03.14 |
- Description
- Structured, 4 blocks, 2D (2 planes in third dimension) multielement airfoil, with cell centered solution
- Data File (ADF)
multi.cgns.gz (2.3Mb)- Data File (HDF)
multi_hdf5.cgns.gz (2.3Mb)
3D Delta Wing
| Contact |
Posted Date |
Revision Date |
|---|
| Chris Rumsey |
Apr.14.00 |
Jul.24.07 |
- Description

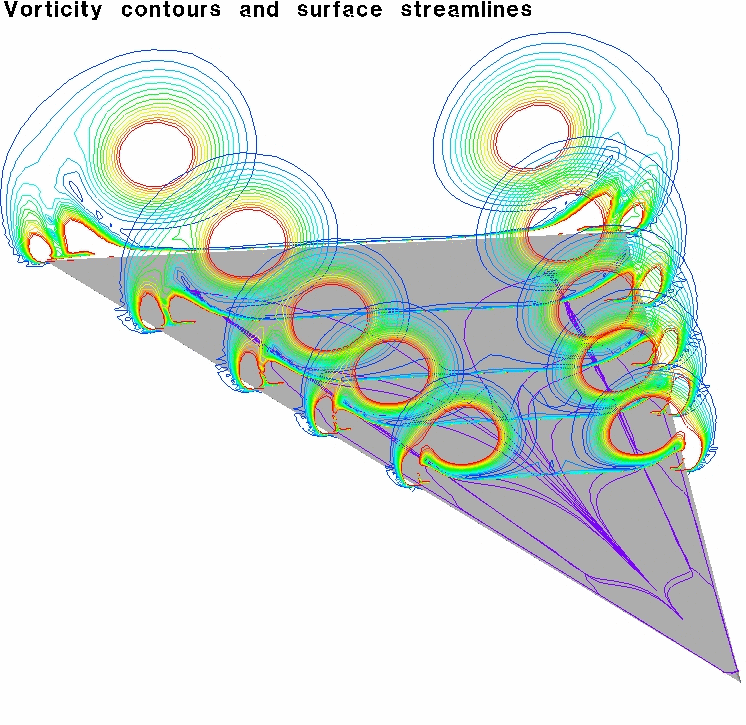

- Structured, 1 block, 3-D Delta Wing, with cell centered solution - see also
delta_vertex.cgns.gz with solution at vertices
- Data File
delta.cgns.gz (8.1Mb)
Wing Vertex solution
| Contact |
Posted Date |
Revision Date |
|---|
| Chris Rumsey |
Jul.23.07 |
Jul.23.07 |
- Description
- Structured, 1 block, 3-D Delta Wing, with solution at vertices - see also
delta.cgns.gz with cell-center solution
- Data File
delta_vertex.cgns.gz (3.1Mb)
Overset Airfoil 1
- Description

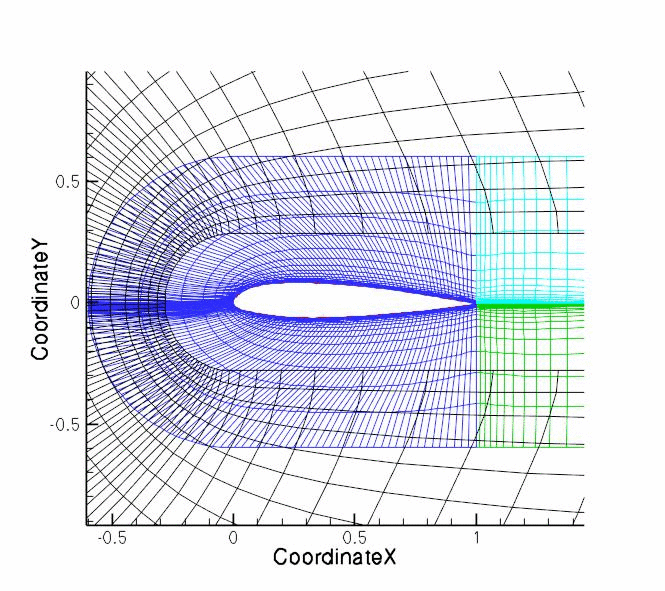

- Structured, 3 block, 2D (1 plane in third dimension) airfoil with combination 1-to-1 and overset connectivity, no solution included
- Data File
oversetnasa1.cgns.gz (181Kb)

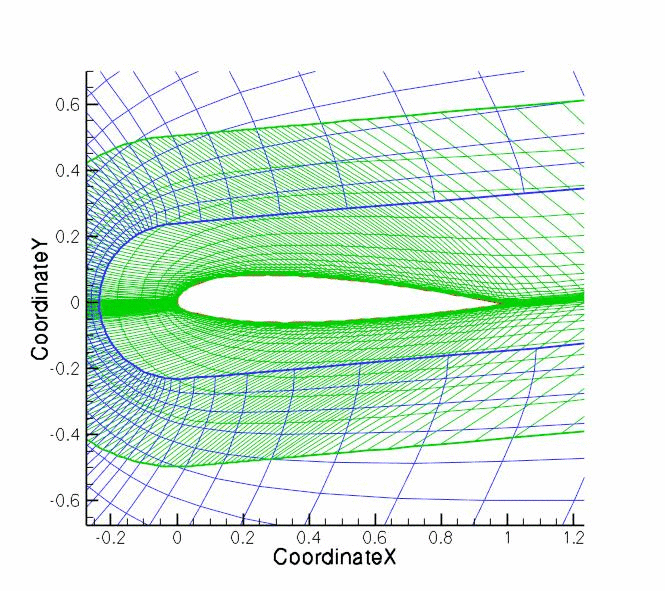

Overset Airfoil 2
- Description
- Structured, 5 block, 2D (1 plane in third dimension) airfoil with combination 1-to-1 and overset connectivity, no solution included
- Data File
oversetnasa2.cgns.gz (191Kb)
DLR-F6 Wing body
| Contact |
Posted Date |
Revision Date |
|---|
| Chris Rumsey |
Feb.09.07 |
Feb.09.07 |
- Description

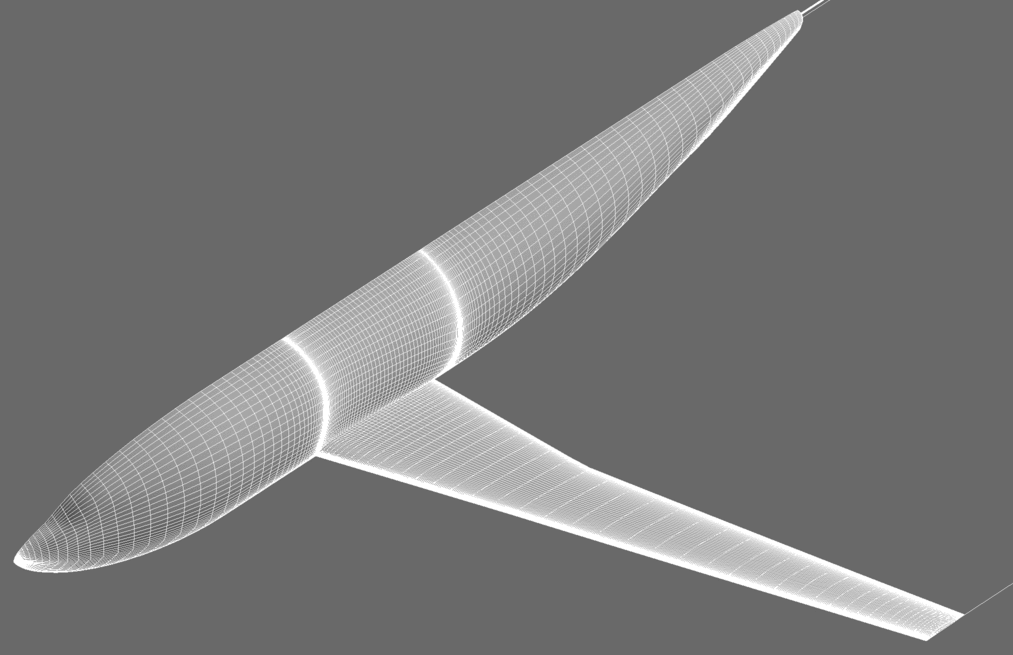

- Structured, 26 block, DLR-F6 wing-body (includes several degenerate lines), no solution included
- Data File
dlr-f6.coar.cgns.gz (55.5Mb)
Business Jet
- Description
- Multiblock stuctured grids for a business jet, a wing/body, and a wing/body/nacelle/pylon configuration are available from Stanford.
- Data File
- Stanford CGNS test files (link to external site)

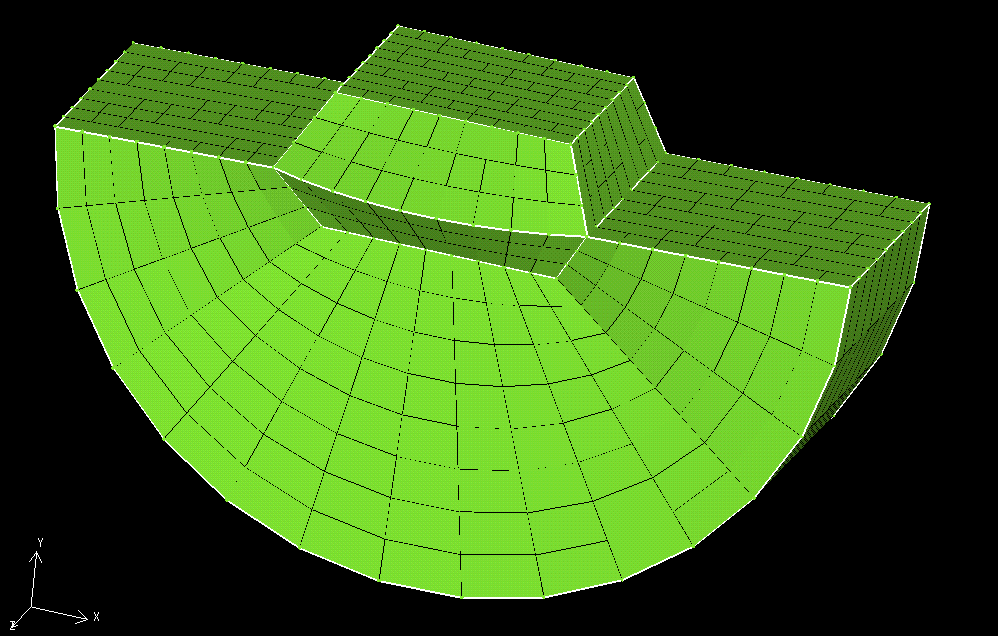

Butterfly mesh
| Contact |
Posted Date |
Revision Date |
|---|
| Diane Poirier |
Apr.06.00 |
Apr.06.00 |
- Description
- 3D Multiblock Structured Mesh
- Data File
5blocks.cgns.gz (21Kb)
Unstructured Grid

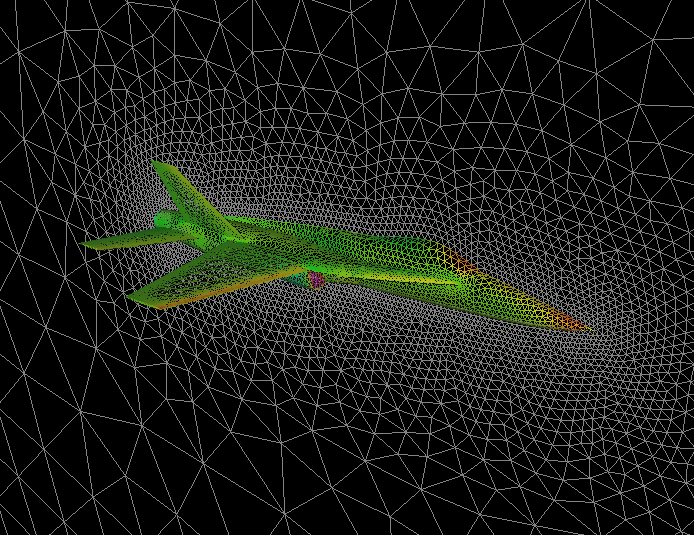

YF-17
- Description
- Unstructured mesh for YF-17 with solution with useful BCs.
- Data File (ADF)
yf17.cgns.gz (7.5Mb)- Data File (HDF)
yf17_hdf5.cgns.gz (7.5Mb)

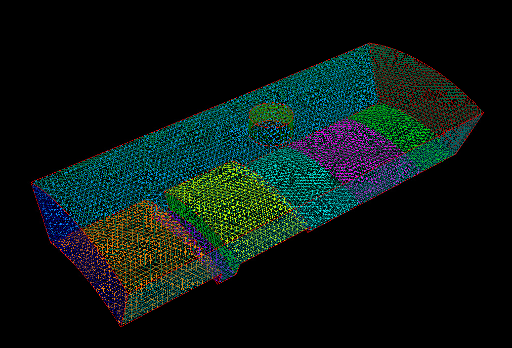

Trapped Vortex
| Contact |
Posted Date |
Revision Date |
|---|
| Marc Poinot |
Feb.27.20 |
Feb.27.20 |
- Description
- Unstructured polygonal mesh of a trapped vortex combustor configuration with Family hierarchy tree (CGNS 4.1 standard).
- Data File
trappedvtx_ngon.cgns.gz (4.8Mb)
SC10 Blade
| Contact |
Posted Date |
Revision Date |
|---|
| Andrew McGhee |
Feb.07.07 |
Feb.07.07 |
- Description

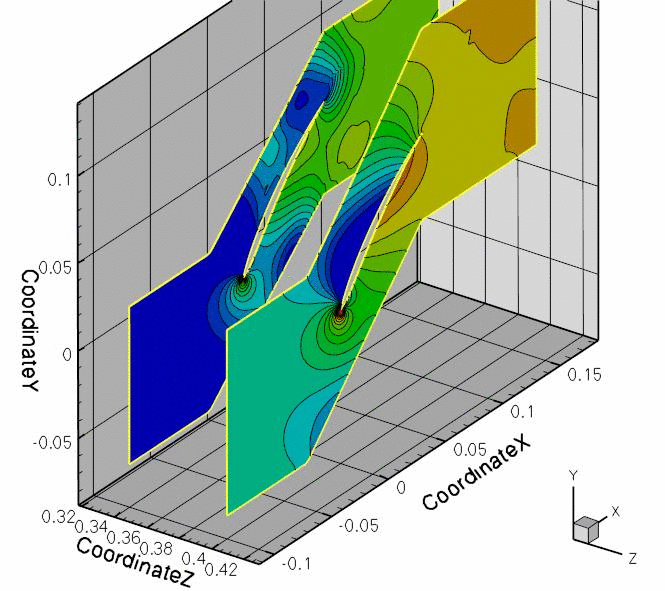

- 3-D hexahedral mesh for the Standard Configuration 10 blade (single blade, part of a compressor cascade), with cell centered solution.
- Data File
SC10_steady.cgns.gz (34.2Mb)

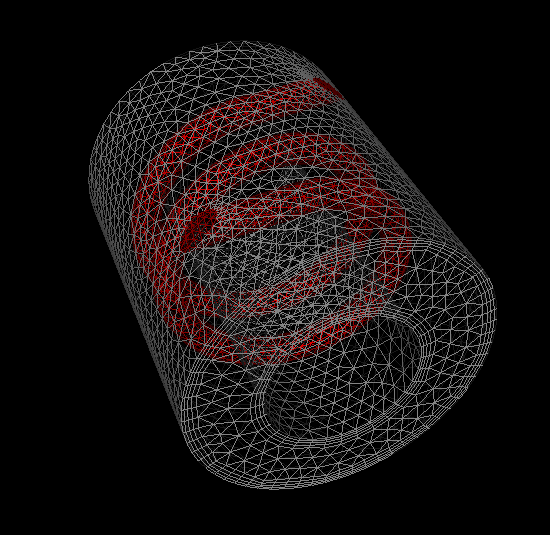

Heating Coil
| Contact |
Posted Date |
Revision Date |
|---|
| Richard Hann |
Jul.29.04 |
Jul.29.04 |
- Description
- 2 zone unstructured mixed element mesh of a coil inside a cylinder with solution.
- Data File
HeatingCoil.cgns.gz (2.3Mb)

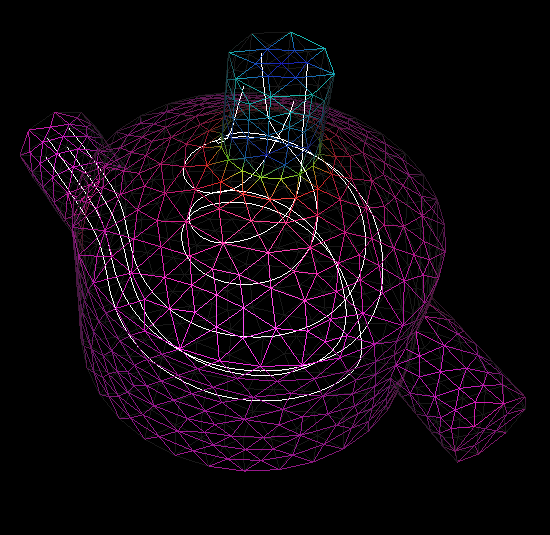

Static Mixer
| Contact |
Posted Date |
Revision Date |
|---|
| Richard Hann |
Jul.29.04 |
Jul.29.04 |
- Description
- Unstructured mesh of a static mixer with solution.
- Data File
StaticMixer.cgns.gz (221Kb)
Piston
| Contact |
Posted Date |
Revision Date |
|---|
| Richard Hann |
Jul.29.04 |
Jul.29.04 |
- Description

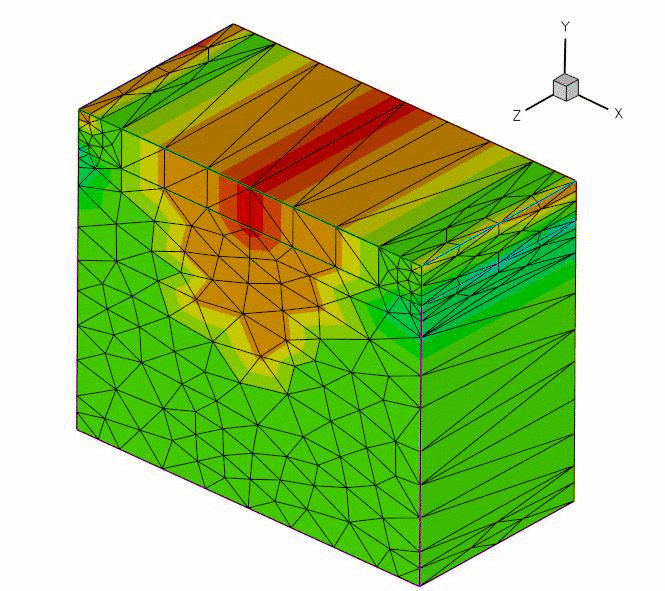

- Moving mesh solution of a piston; 20 timesteps (not using the standard BaseIterativeData method, but rather storing each time step in a separate base).
- Data File
MovingTransient.cgns.gz (849Kb)
Obstructed Elbow
| Contact |
Posted Date |
Revision Date |
|---|
| Steve Feldman |
Apr.07.00 |
Apr.07.00 |
- Description

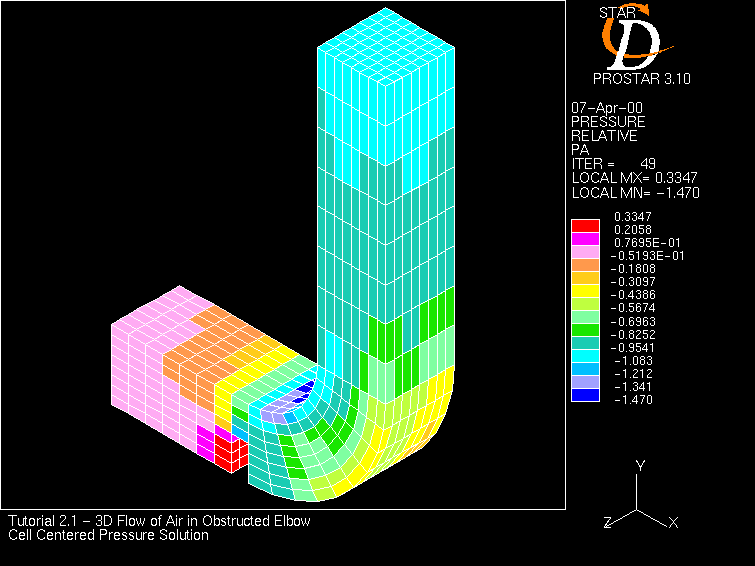

- 3D Flow of Air in Obstructed Elbow: Unstructured mesh of MIXED element types with cell centered solution, no boundaries or boundary info included.
- Data File
tut21.cgns.gz (61Kb)
